Multicrop Thresher DR1378 GN

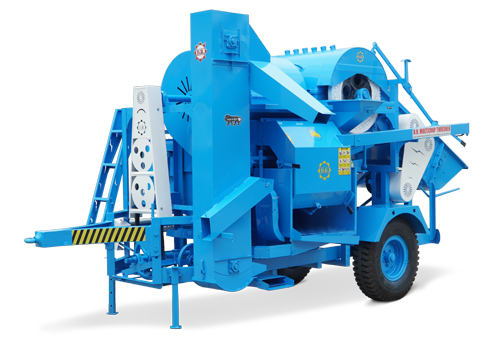

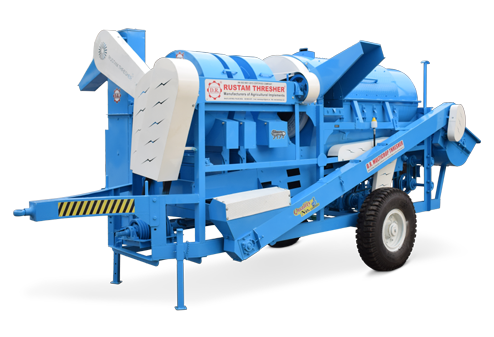

Multicrop Thresher DR3580
| Model | DR 3580 |
|---|---|
| Type | Tractor Operated |
| Input Power Source | Tractor PTO |
| Power Required | 45 HP And Above |
| Threshing Drum | 1981x889 (mm L x D) |
| Threshing Drum R.P.M | 720 |
| Cleaning System | Aspirators, Oscillating Screen |
| Blower Speed | Variable/Adjustable |
| Crop Input | Rear Basket And Side Hopper |
| Input Crops | Multi Crop |
| Overall Dimensions | 6096x2133x2234 mm (L x B x H) |
| Thresher Weight (approx.) | 3200 kg |
Note*:- All specifications are valid under standard operating conditions of threshers

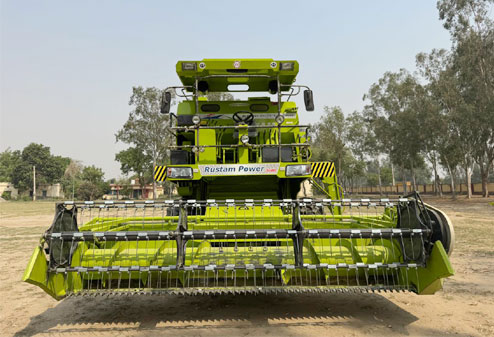

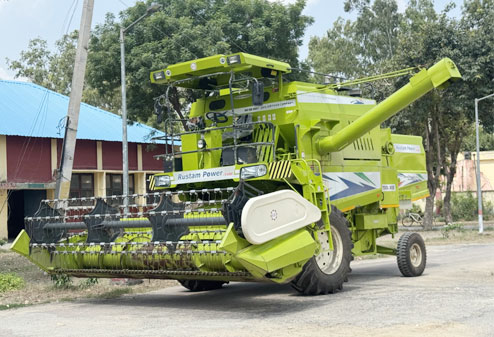

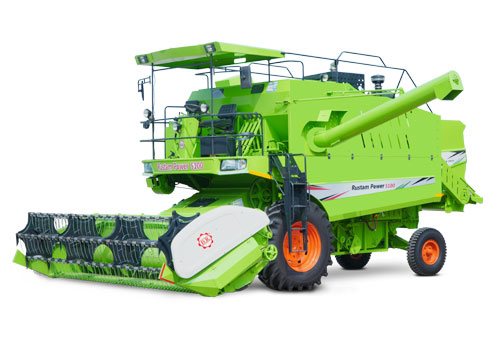

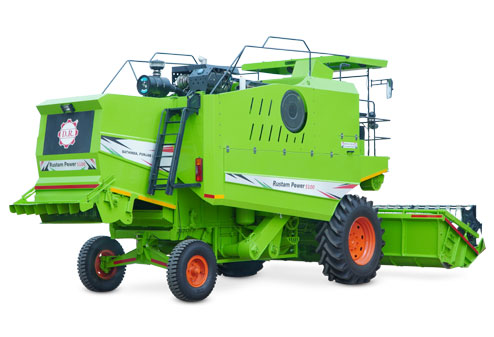

Harvester Rustam Power 5100
Technical Specification of Rustam Power 5100
Power
133 HP AT 2500 RPM
No. of Cylinder
Six
Air Cleaner
Dry
Cooling System
Water & Coolant
Cutter Bar
Width
4380 MM
No. of Blades
59
No. of Guards
29
Feeder Housing
Chain Type Feed Rack
Other
Gear Speeds (KM/HR)
Low To High
Straw Walker
Five
Other Dimensions
Ground Clearance (MM)
380
Weight (KGS) Overall
9400 KGS
Grain Tank Capacity
1750 KGS
| Main Dimensions | Working | Transport |
|---|---|---|
| Length (MM) | 8500 | 12560 |
| Width (MM) | 6250 | 3030 |
| Height (MM) | 3900 | 3900 |
Thresher Mechanism
Type
Wheat & Paddy-Rasp
Speed (RPM)
1600 To 1750 RPM
Speed Adjustment
By Means of Mechanical Variator
Race
Hand, Button & Foot Race Available
Transmission / Drive
No. of Gears
3 Forwards, 1 Reverse
Pressure Steering System
Working Per Hours
Wheat : 2 To 2.5 Acre
Paddy : 1.5 To 2 Acre
Available In
4X4 System & 4X2 System
AC Cabin
With Super SMS System
Battery
No. of Battery
Two
Capacity & Rating of Each
12V, 85 AH
Tyre Size
Front
18.4-30 & 14 PR
Rear
9.00-16 & 16 PR
Diesel Tank
Fuel Tank (LTR.)
370 LTR.
Fuel Consumption Per Hours
5.5 To 6.5 LTR
